磁钩

产品描述
磁钩是由磁铁和铁质壳体（或其他材料）组成磁路，导出强大的磁力。
销售1部: +86-750-3868783
销售2部: +86-750-3868786
销售3部: +86-750-3369862
传真: +86-750-3868789
邮箱: cy@jpmfmagnet.com

产品规格

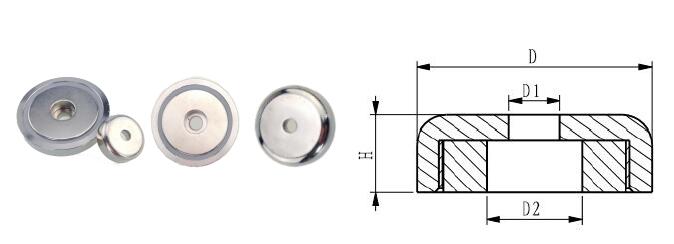

Model 型号	D	D1	D2	H	自重Weight (g)	吸力Attraction (Kg)
NA10	10	3.5	6.5	5	3	1
NA12	12	3.5	6.5	5	4	1.5
NA14	14	3.5	6.5	4.5	5	4
NA16	16	3.5	6.5	5.2	7	6
NA16-1	16	3.5	6.5	5.2	8	6
NA18	18	4.5	8.6	6	10	8
NA20	20	4.5	8.6	7.2	15	10
NA20-1	20	4.5	8.6	6	13	10
NA22	22	4.5	8.6	6.9	18	15
NA25	25	5.5	11	7.7	24	22
NA25-1	25	5.5	11	6.9	23	22
NA28	28	5.5	11	6.4	28	25
NA30	30	5.5	11	6.4	32	29
NA32	32	5.5	11	7.8	39	32
NA32-1	32	5.5	11	6.8	38	32
NA34	34	5.5	11	7.3	45	35
NA36	36	6.5	12	7.6	50	41
NA36-1	36	6.5	12	6.9	50	41
NA38	38	6.5	12	7.4	60	47
NA40	40	6.5	12	7.9	69	52
NA42	42	6.5	12	8.8	77	61
NA42-1	42	6.5	12	7.9	78	61
NA45	45	8.5	19	8.7	90	70
NA48	48	8.5	19	10.8	120	81
NA48-1	48	8.5	19	9.6	113	81
NA50	50	8.5	19	10.7	136	89
NA55	55	8.5	19	12	192	102
NA60	60	8.5	19	15	243	115
NA60-1	60	8.5	19	13.9	265	115
NA65	65	8.5	19	14.9	338	130
NA70	70	10.5	21	16.9	440	148
NA75	75	10.5	21	17.8	480	163
NA75-1	75	10.5	21	17.9	537	163
NA80	80	10.5	21	19	655	192

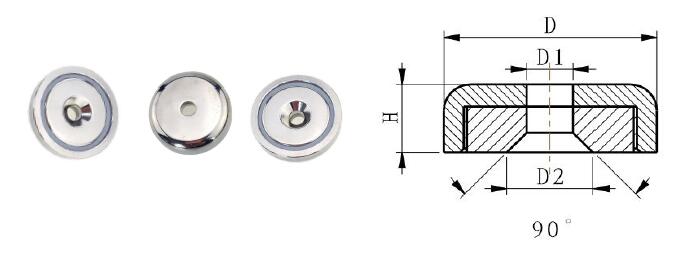

型号Model	D	D1	D2	H	自重Weight(g)	吸力Attraction(Kg)
NB10	10	3.5	6.5	5	2	1
NB12	12	3.5	6.5	5	4	1.5
NB14	14	3.5	6.5	4.5	5	3
NB16	16	3.5	6.5	5.2	7	5
NB16-1	16	3.5	6.5	5.2	7	5
NB18	18	4.5	8	6	10	6
NB20	20	4.5	8	7.2	13	8
NB20-1	20	4.5	8	6	12	8
NB22	22	4.5	8	6.9	17	16
NB25	25	5.5	9	7.7	22	20
NB25-1	25	5.5	9	6.9	23	20
NB28	28	5.5	9	6.4	27	23
NB30	30	5.5	9	6.4	32	27
NB32	32	5.5	9	7.8	38	30
NB32-1	32	5.5	9	6.8	38	30
NB34	34	5.5	9	7.3	44	33
NB36	36	6.5	11	7.6	48	40
NB36-1	36	6.5	11	6.9	50	40
NB38	38	6.5	11	7.4	59	44
NB40	40	6.5	11	7.9	69	50
NB42	42	6.5	11	8.8	75	65
NB42-1	42	6.5	11	7.9	76	65
NB45	45	8.5	15	8.7	89	70
NB48	48	8.5	15	10.8	114	75
NB48-1	48	8.5	15	9.6	111	75
NB50	50	8.5	15	10.7	134	81
NB55	55	8.5	15	12	189	93
NB60	60	8.5	15	15	235	110
NB60-1	60	8.5	15	13.9	260	110
NB65	65	8.5	15	14.9	333	122
NB70	70	10.5	18	16.9	429	138
NB75	75	10.5	18	17.8	460	155
NB75-1	75	10.5	18	17.9	524	155
NB80	80	10.5	18	19	641	192

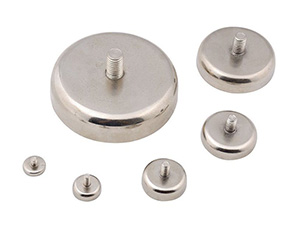

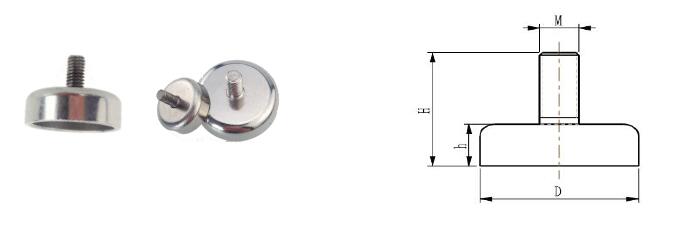

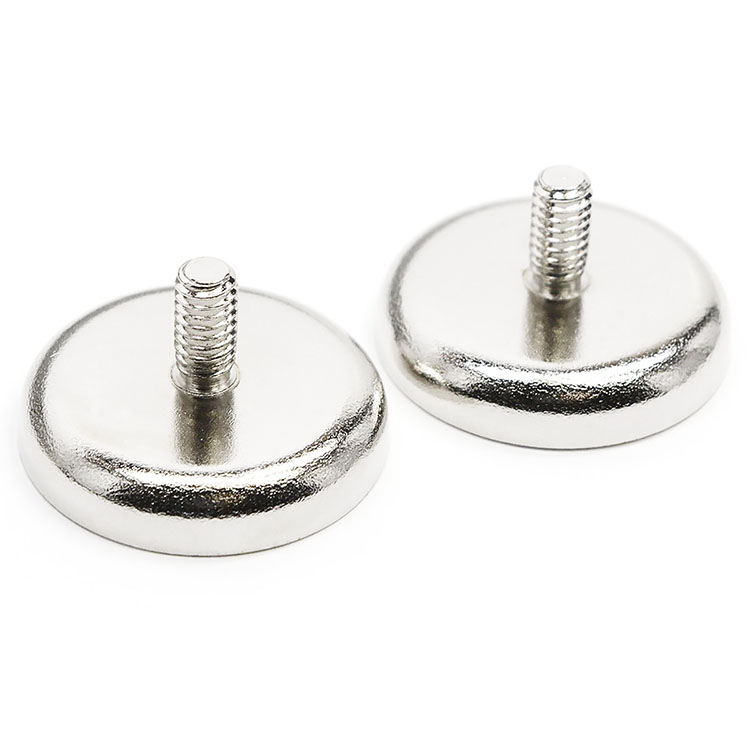

型号Model	D	M	H	h	自重Weight(g)	吸力Attraction(Kg)
NC6	6	3	10.5	4.7	2	0.5
NC8	8	3	11.5	4.7	3	1
NC10	10	3	14.3	5	4	1.5
NC12	12	3	14	5	5	2
NC14	14	4	14	4.5	7	5
NC16	16	4	14	5.2	9	8
NC16-1	16	4	14	5.2	9	8
NC18	18	4	14	6	12	10
NC20	20	4	16	7.2	16	12
NC20-1	20	4	14.8	6	15	12
NC22	22	4	16.2	6.9	20	18
NC25	25	5	17	7.7	26	22
NC25-1	25	5	16.2	6.9	27	22
NC28	28	5	16.8	6.4	31	26
NC30	30	5	16.8	6.4	35	29
NC32	32	6	18	7.8	43	34
NC32-1	32	6	17.1	6.8	43	34
NC34	34	6	17.7	7.3	50	37
NC36	36	6	17.6	7.6	54	41
NC36-1	36	6	16.7	6.9	55	41
NC38	38	6	17.2	7.4	65	46
NC40	40	6	17.7	7.9	75	51
NC42	42	6	18.7	8.8	83	68
NC42-1	42	6	17.7	7.9	83	68
NC45	45	8	21.9	8.7	103	75
NC48	48	8	24	10.8	130	81
NC48-1	48	8	22.8	9.6	126	81
NC50	50	8	25.6	10.7	151	91
NC55	55	8	29.2	12	209	102
NC60	60	8	31.5	15	256	120
NC60-1	60	8	31.5	13.9	282	120
NC65	65	10	33	14.9	362	137
NC70	70	10	34	16.9	467	153
NC75	75	10	35	17.8	510	178
NC75-1	75	10	35	17.9	564	178
NC80	80	10	36.2	19	681	200

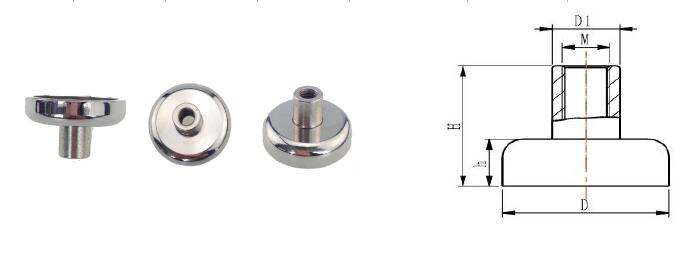

型号Model	D	D1	M	H	h	自重Weight(g)	吸力Attraction(Kg)
ND6	6	4.5	3	10.5	4.7	2	0.5
ND8	8	4.5	3	11.5	4.7	3	1
ND10	10	6	3	12.5	5	4	1.5
ND12	12	6	3	12.5	5	5	3
ND14	14	6.5	4	12.5	4.5	7	5
ND16	16	6.5	4	13.5	5.2	9	8
ND16-1	16	6.5	4	13.5	5.2	10	8
ND18	18	6.5	4	13.8	6	13	10
ND20	20	6.5	4	15	7.2	17	12
ND20-1	20	6.5	4	13.8	6	15	12
ND22	22	6.5	4	16.2	6.9	21	18
ND25	25	7.5	5	17	7.7	28	22
ND25-1	25	7.5	5	16.2	6.9	27	22
ND28	28	7.5	5	15.7	6.4	31	26
ND30	30	7.5	5	16.6	6.4	36	29
ND32	32	10	6	18	7.8	45	34
ND32-1	32	10	6	17	6.8	45	34
ND34	34	10	6	17.5	7.3	52	37
ND36	36	10	6	18.5	7.6	55	41
ND36-1	36	10	6	17.8	6.9	58	41
ND38	38	10	6	18.3	7.4	68	46
ND40	40	10	6	18.8	7.9	78	51
ND42	42	10	6	18.8	8.8	84	68
ND42-1	42	10	6	18.8	7.9	86	68
ND45	45	12	8	19.6	8.7	103	75
ND48	48	12	8	24	10.8	130	81
ND48-1	48	12	8	22.8	9.6	128	81
ND50	50	12	8	25.6	10.7	153	91
ND55	55	12	8	29.2	12	211	102
ND60	60	12	8	28	15	263	120
ND60-1	60	12	8	32.2	13.9	285	120
ND65	65	12	8	32.2	14.9	358	137
ND70	70	17	10	34.2	16.9	481	153
ND75	75	17	10	35	17.8	515	178
ND75-1	75	17	10	35	17.9	577	178
ND80	80	17	10	36.2	19	694	200

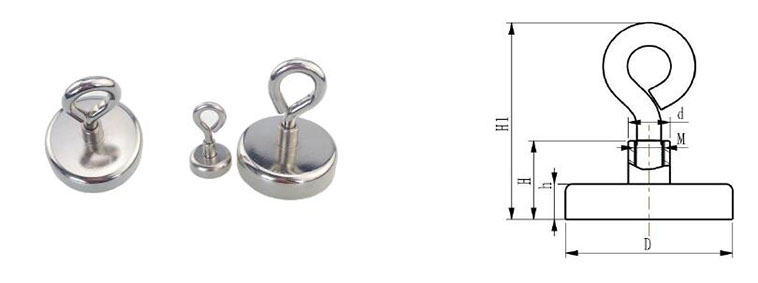

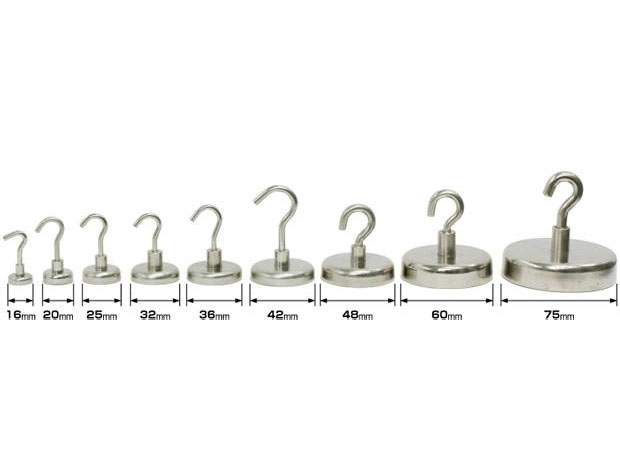

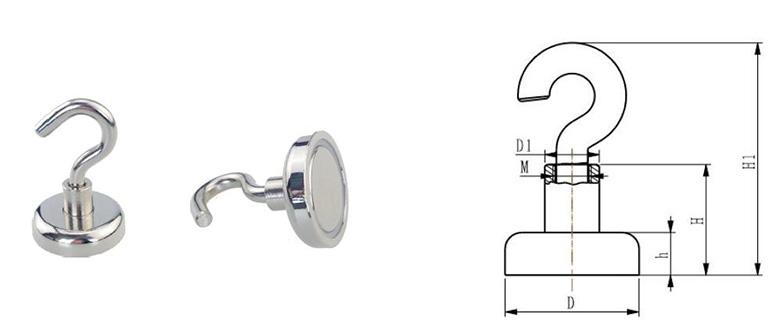

型号Model	D	D1	M	h	H	H1	自重Weight(g)	吸力Attraction(Kg)
NE6	6	4.5	3	4.7	10.5	32.5	4	0.5
NE8	8	4.5	3	4.7	11.5	33.5	4	1
NE10	10	6	3	5	12.5	34.5	5	1.5
NE12	12	6	3	5	12.5	34.5	7	3
NE14	14	6.5	4	4.5	12.5	35	10	5
NE16	16	6.5	4	5.2	13.5	35.7	12	8
NE16-1	16	6.5	4	5.2	13.5	36	13	8
NE18	18	6.5	4	6	13.8	36.3	16	10
NE20	20	6.5	4	7.2	15	37.8	21	12
NE20-1	20	6.5	4	6	13.8	36.3	18	12
NE22	22	6.5	4	6.9	16.2	38.7	24	18
NE25	25	7.5	5	7.7	17	44.9	33	22
NE25-1	25	7.5	5	6.9	16.2	43.7	32	22
NE28	28	7.5	5	6.4	15.7	43.2	36	26
NE30	30	7.5	5	6.4	16.6	44.1	41	29
NE32	32	10	6	7.8	18	47.8	54	34
NE32-1	32	10	6	6.8	17	48.3	54	34
NE34	34	10	6	7.3	17.5	48.8	61	37
NE36	36	10	6	7.6	18.5	49.8	64	41
NE36-1	36	10	6	6.9	17.8	49.1	67	41
NE38	38	10	6	7.4	18.3	49.6	77	46
NE40	40	10	6	7.9	18.8	50.1	87	51
NE42	42	10	6	8.8	18.8	50	93	68
NE42-1	42	10	6	7.9	18.8	50.1	95	68
NE45	45	12	8	8.7	19.6	56.6	123	75
NE48	48	12	8	10.8	24	61	150	81
NE48-1	48	12	8	9.6	22.8	59.8	148	81
NE50	50	12	8	10.7	25.6	62.6	173	91
NE55	55	12	8	12	29.2	66.2	231	102
NE60	60	12	8	15	28	66	283	120
NE60-1	60	12	8	13.9	32.2	69.2	305	120
NE65	65	12	8	14.9	32.2	69.2	378	137
NE70	70	17	10	16.9	34.2	83.2	531	153
NE75	75	17	10	17.8	35	84	555	178
NE75-1	75	17	10	17.9	35	84	627	178
NE80	80	17	10	19	36.2	85.2	744	200

型号Model	D	D1	M	h	H	H1	自重Weight(g)	吸力Attraction(Kg)
NF6	6	4.5	3	4.7	10.5	32.5	4	0.5
NF8	8	4.5	3	4.7	11.5	33.5	4	1
NF10	10	6	3	5	12.5	34.5	5	1.5
NF12	12	6	3	5	12.5	34.5	7	3
NF14	14	6.5	4	4.5	12.5	35	10	5
NF16	16	6.5	4	5.2	13.5	35.7	12	8
NF16-1	16	6.5	4	5.2	13.5	36	13	8
NF18	18	6.5	4	6	13.8	36.3	16	10
NF20	20	6.5	4	7.2	15	37.8	21	12
NF20-1	20	6.5	4	6	13.8	36.3	18	12
NF22	22	6.5	4	6.9	16.2	38.7	24	18
NF25	25	7.5	5	7.7	17	44.9	33	22
NF25-1	25	7.5	5	6.9	16.2	43.7	32	22
NF28	28	7.5	5	6.4	15.7	43.2	36	26
NF30	30	7.5	5	6.4	16.6	44.1	41	29
NF32	32	10	6	7.8	18	47.8	54	34
NF32-1	32	10	6	6.8	17	48.3	54	34
NF34	34	10	6	7.3	17.5	48.8	61	37
NF36	36	10	6	7.6	18.5	49.8	64	41
NF36-1	36	10	6	6.9	17.8	49.1	67	41
NF38	38	10	6	7.4	18.3	49.6	77	46
NF40	40	10	6	7.9	18.8	50.1	87	51
NF42	42	10	6	8.8	18.8	50	93	68
NF42-1	42	10	6	7.9	18.8	50.1	95	68
NF45	45	12	8	8.7	19.6	56.6	123	75
NF48	48	12	8	10.8	24	61	150	81
NF48-1	48	12	8	9.6	22.8	59.8	148	81
NF50	50	12	8	10.7	25.6	62.6	173	91
NF55	55	12	8	12	29.2	66.2	231	102
NF60	60	12	8	15	28	66	283	120
NF60-1	60	12	8	13.9	32.2	69.2	305	120
NF65	65	12	8	14.9	32.2	69.2	378	137
NF70	70	17	10	16.9	34.2	83.2	531	153
NF75	75	17	10	17.8	35	84	555	178
NF75-1	75	17	10	17.9	35	84	627	178
NF80	80	17	10	19	36.2	85.2	744	200

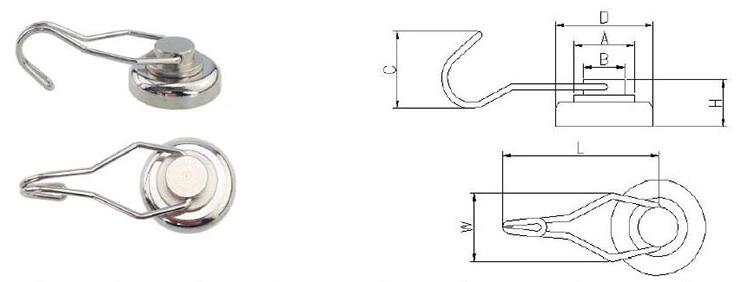

型号 Model	D	A	B	C	H	L	W	自重 Weight (g)	垂直吸力 Vertical Attraction (Kg)	侧面吸力 Side Attraction (Kg)
NG25	25	20	13.5	24	15.5	55	23	38	14	3.5
NG32	32	20	13.5	24	15.5	55	23	52	23	5.5
NG36	36	20	13.5	24	15.1	55	23	65	29	6.5

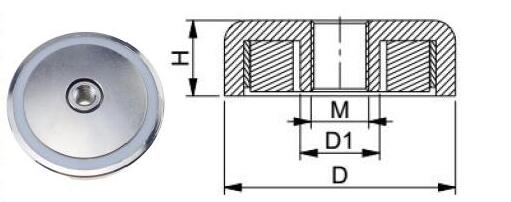

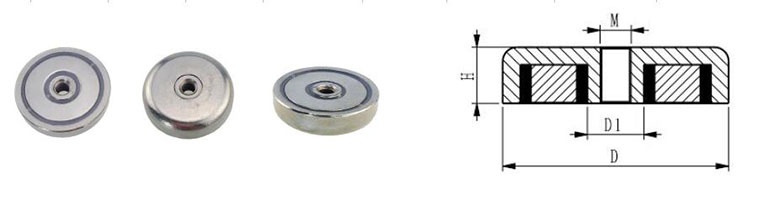

型号 Model	D	H	D1	M	自重 Weight (g)	吸力 Attracti on (Kg)
NH16	16	5.2	5.5	4	7.1	4
NH20	20	7.2	6	4	14	6
NH25	25	7.7	7	5	25	14
NH32	32	7.8	7	5	44	23
NH36	36	7.6	9	6	55	29
NH42	42	8.8	9	6	86	32
NH48	48	10.8	13	8	132	63
NH60	60	15	13	8	268	95
NH75	75	17.8	16	10	508	155

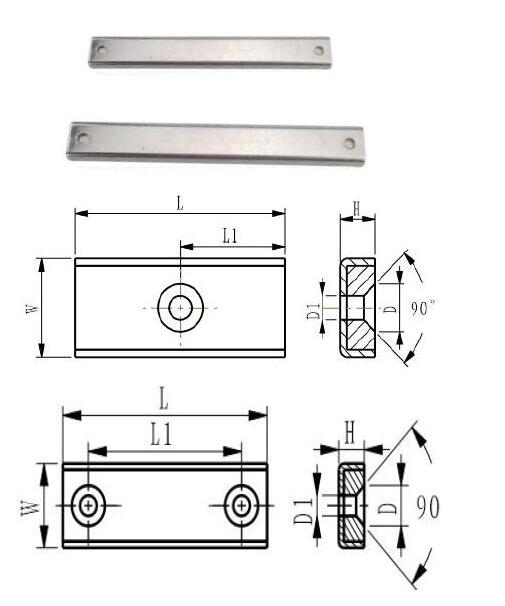

型号 Model	L	L1	W	H	D1	D2	自重 Weight (g)	垂直吸力 Vertical Attraction (Kg)
NI10	10	5	13.5	5	3.3	6.5	4.5	4
NI15	15	7.5	13.5	5	3.3	6.5	6.8	7
NI20	20	10	13.5	5	3.3	6.5	9.2	8
NI30	30	15	13.5	5	3.3	6.5	14	16
NI40	40	30	13.5	5	3.3	6.5	18.4	17
NI50	50	40	13.5	5	3.3	6.5	23.2	27
NI60	60	50	13.5	5	3.3	6.5	27.9	30
NI80	80	70	13.5	5	3.3	6.5	37.8	33
NI100	100	90	13.5	5	3.3	6.5	46.9	36
NI120	120	110	13.5	5	3.3	6.5	56.5	40

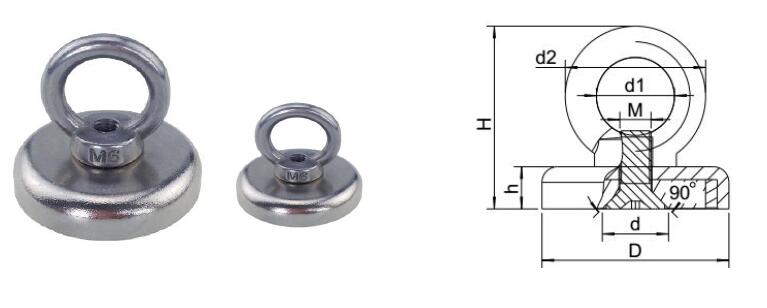

型号 Model	D	H	h	d	d1	d2	M	自重 Weight (g)	吸力 Attraction (Kg)
NJ25	25	31	7.7	11	13.5	23	5	44	14
NJ32	32	31.1	7.8	11	13.5	23	5	59	25
NJ36	36	35.5	7.6	12	17	26.8	6	71	29
NJ42	42	36.7	8.8	12	17	26.8	6	98	37
NJ48	48	46.2	10.8	19	20.3	35.5	8	166	68
NJ60	60	50.4	15	19	20.3	35.5	8	290	112
NJ75	75	62.9	17.8	21	25.5	43.8	10	557	162

型号 Model	D	H	D1	M	自重 Weight (g)
NHA	15.88	4.78	5.38	#4-40 UNC 2B	6.4
NHC	19.05	6.35	7.11	#6-32 UNC 2B	12
NHX0	25.4	6.35	7.62	#8-32 UNC 2B	23
NHX4	31.75	9.53	7.87	#10-32 UNF 2B	51
NHX8	38.1	9.53	7.87	#10-32 UNF 2B	78
NHXC	44.45	9.53	11.11	1/4"-20UNC 2B	106
NHY0	50.8	12.7	11.11	1/4"-20UNC 2B	181
NHY8	63.5	15.88	15.88	3/8"-16UNC 2B	355
NHZ0	76.2	19.05	15.88	3/8"-16UNC 2B	625

型号 Model	L	D	D1	D2	H	H1	h	垂直吸力 Vertical Attraction (Kg)	侧面吸力 Side Attraction (Kg)
FG36	70	36	10.8	16	30.5	14.5	8.3	4.2	1.7
FG52	78	52	10.8	16	30.5	14.5	8.3	7.4	2.5

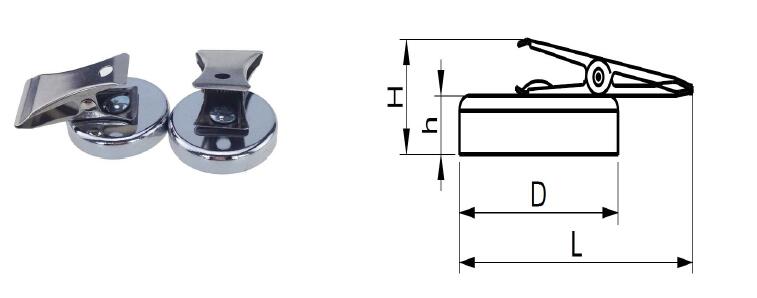

型号 Model	L	D	H	h	垂直吸力 Vertical Attraction	侧面吸力 Side Attraction
					(Kg)	(Kg)
FK36	50.5	36	23.2	7.4	6.8	2

产品优势

品质控制

产品应用

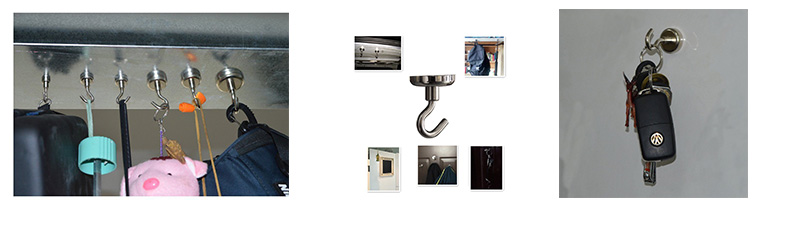

磁性吸力件可应用于门、橱柜和门吸、天花板固定、标牌和横幅、紧密件、夹具及固定装置、照明、展具、工业固定装置等。
